Aluzinc Steel Tile Batten

Aluzinc steel tile batten is manufactured by roll-forming high-strength G550 aluzinc steel sheet with high zinc content of A120 grade. It features high strength and excellent corrosion resistance. Compared with wooden tile battens, aluzinc steel battens can meet higher load-bearing requirements.

When installed at a spacing of 600mm, the maximum static load capacity of the metal batten reaches 1000 Newtons. The weight of a single roof tile is no more than 5.5kg per square meter, and the corresponding load is 5.5kg*10*9.8=539 Newtons. Normally, 3 to 4 rows of battens are used per square meter to share the load evenly, with each batten bearing only 135 Newtons on average.

Steel metal tile battens fully meet the requirements for tile fixing and structural safety.

Excellent Performance: With high strength and corrosion resistance, it can meet load-bearing requirements and greatly extend the service life of buildings. Aluzinc steel tile battens have outstanding weather resistance, fire resistance, termite resistance and moisture resistance.

The aluzinc coating process is mature and easy to inspect, ensuring excellent corrosion resistance and structural stability. Aluzinc steel tile battens are also environmentally friendly, as they can replace wooden battens to reduce timber consumption and are fully recyclable.

Two thickness options are available: 0.5mm and 0.7mm.

Specification (0.5mm Thickness)

Length: 4m

Thickness: 0.5mm

Size: 30*63mm

Height: 22mm

Wall Thickness: 0.5mm

Weight: 1.56kg / 4m

Packaging: 5000 pieces per bundle

Specification (0.7mm Thickness)

Length: 4m

Thickness: 0.7mm

Size: 30*63mm

Height: 22mm

Wall Thickness: 0.7mm

Weight: 1.7kg / 4m

Packaging: 5000 pieces per bundle

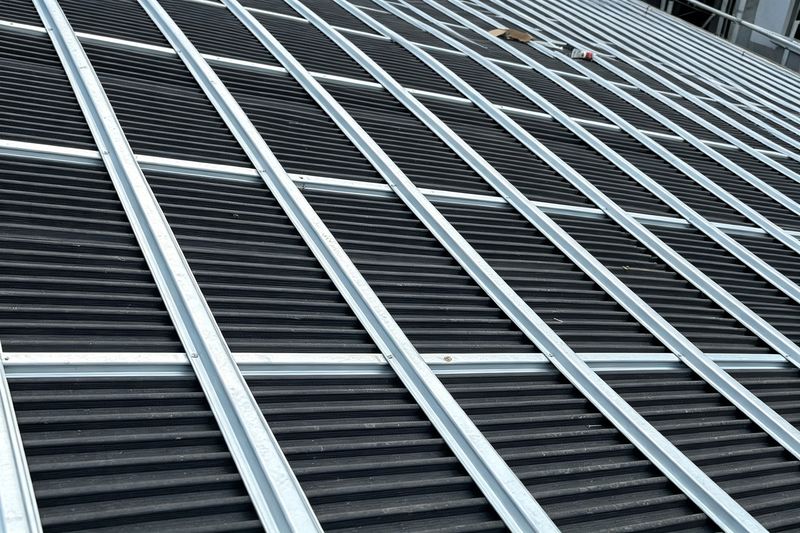

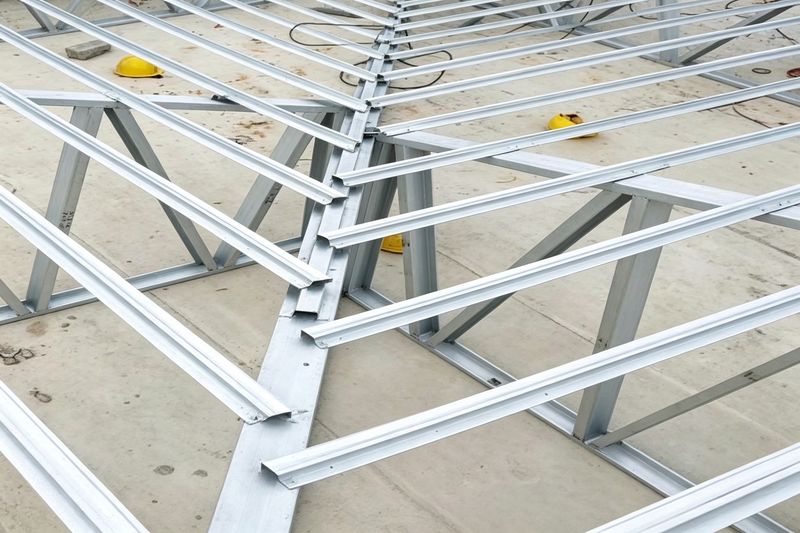

Product Photos
